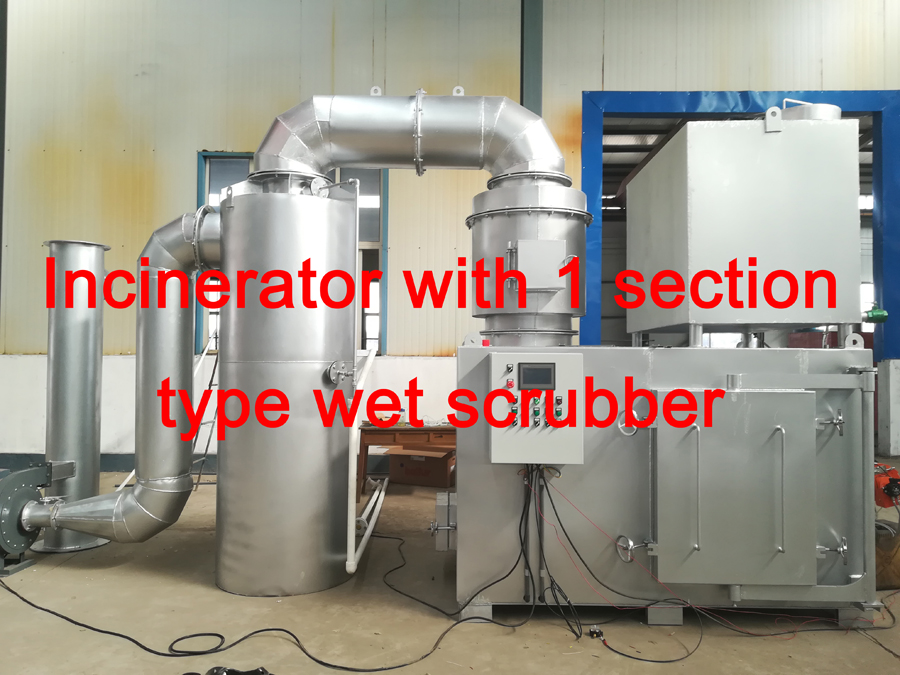

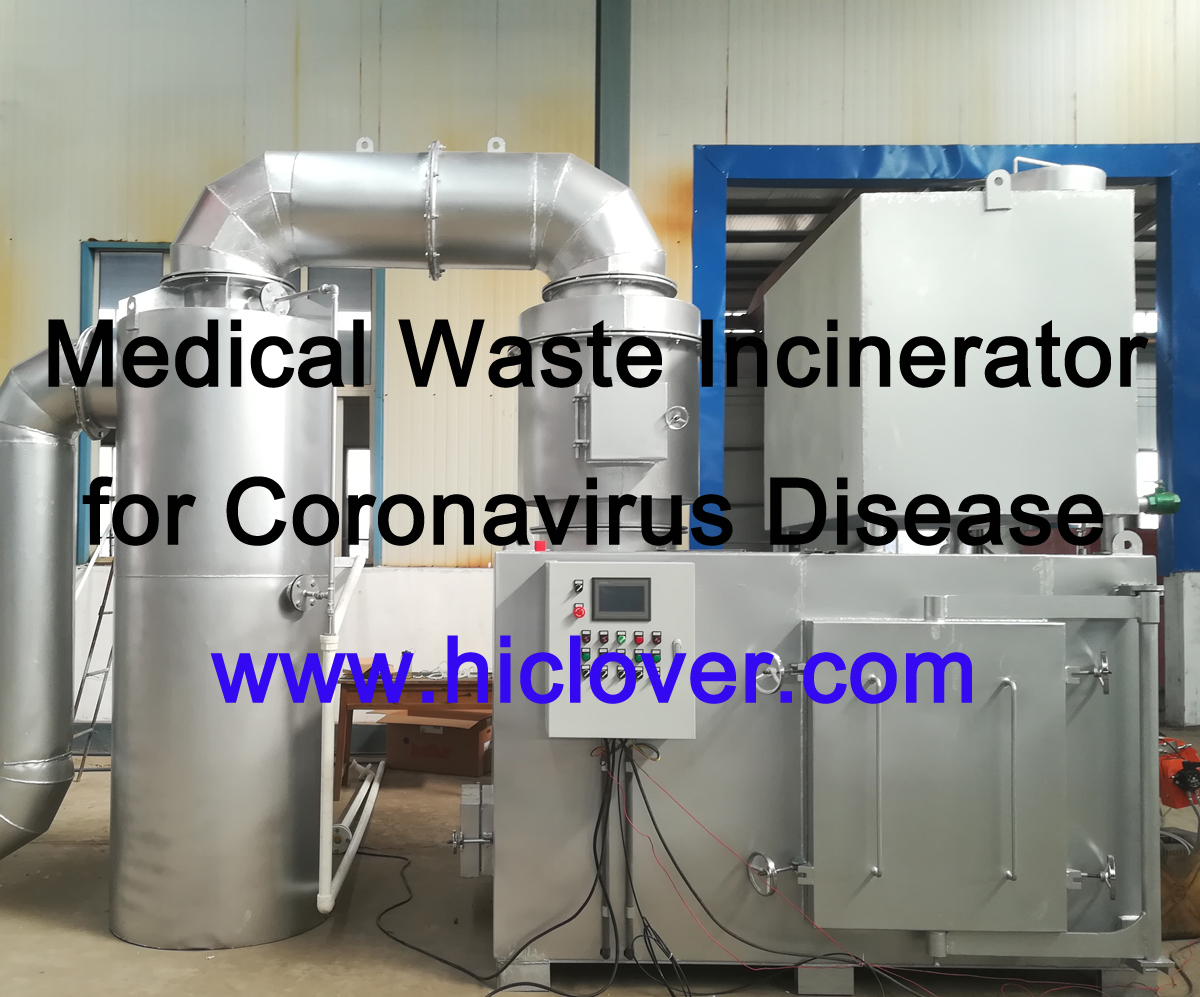

Bio Medical Waste Inineration 100kgs per hour with Water Wet Scrubber System Model TS100 PLC for COVID 19
|
Items/Model |
TS100(PLC) |
|
Picture |
|
|
Principle |
Medical Waste Incineration Treatment |
|
Burn Rate |
Average 100 kg/hour |
|
Control Mode |
PLC(Programmable Logic Controller Incinerator) |
|
Combustion Chamber |
1200L |
|
Internal Dimensions |
120x100x100cm |
|
Secondary Chamber |
600L |
|
Smoke Filter Chamber |
Yes(Dry Scrubber)(wet Scrubber Optional) |
|
Feed Mode |
Manual |
|
Voltage |
220V/380V |
|
Power |
0.7Kw |
|
Oil Consumption (kg/hour) |
average 20.4 |
|
Gas Consumption (m3/hour) |
*** |
|
Temperature Monitor |
Digital Display |
|
Temperature Protection |
Yes |
|
Oil Tank |
200L |
|
Feed Door |
80x60cm |
|
Chimney |
10Meter |
|
Chimney Type |
Stainless Steel |
|
1st. Chamber Temperature |
800℃–1000℃ |
|
2nd. Chamber Temperature |
1000℃-1200℃ |
|
Residency Time |
2.0 Sec. |
|
Gross Weight |
6000kg |
|
External Dimensions |
260x150x180cm |
-
